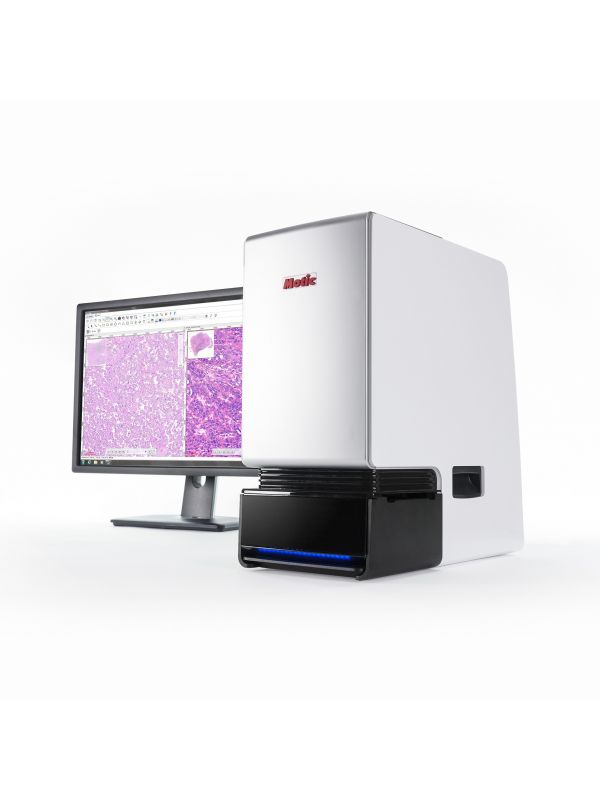

MoticEasyScan One
SKU
ES-ONE
Bring the Lab to your Desktop
Compact, powerful, and deployable anywhere, the MoticEasyScan One is the perfect assistant for any digital slide application and sets a new industry benchmark with its affordable price and high performance, seamlessly integrating into any workflow and bringing lab-quality scanning to any work environment.
Key MoticEasyScan Features:
-
Flexible cloud or local network deployable servers.
-
Digital Slide management software for library management.
-
Conference tools for group discussion and education.
Experience complete clinical collaboration without boundaries
Make it easy – with MoticEasyScan
In clinical consultations with an additional expert, digitized patient information can be sent anywhere in the world for a second opinion – instantly. Confidential samples remain protected, and proprietary patient data is kept safe at all times. It’s that easy.
The MoticEasyScan Difference
Progressive Scan
- Minimal moving parts, high mechanical stability.
Customized Modes
- Custom scanning modes for single slides within a carrier.
Z-Stack Mode
- Create a digital database for a number of sample layers.
10-Watt LED
- Bright and optimized for 5500-6000K color temp.
Flexible Sizing
- Trays accept a wide variety of slide size and tolerance.
- Enjoy secure, password protected scanning.
Introducing the FS-Live Telepathology System
Our All-New System Built for Real-Time Remote Diagnosis and Consultation.
The FS-Live allows pathologists and other health specialists to view a case slide in seconds from anywhere in the world, eliminating costly travel time for hospitals and improving quality of care for patients.
Technical Specifications
| Objectives | Plan APOCHROMAT 20X/0.75 S Apo Objective 10X/0.3 |
| Optical System | CCIS® |
| Scanning time | Standard mode: 160s (40X – with 20X objective) Standard mode: 60s (20X – with 10X objective) |
| Resolution | 40X: 0.26µm/pixel 20X: 0.52µm/pixel |
| Focusing Technique | Real-time autofocus |
| Scanning Camera | 5.0 MP (2/3″ high speed Sensor) |
| Nosepiece | 3 hole |
| Light Source | 10W LED (Lifetime: 25,000 Hours) |
| Slide Capacity | 1 Slide |
| Slide Tray | 1 Slide Capacity |
| Slide Dimensions | 76 x 26mm |
| Slide Tolerances (mm) | Length: +0/-1, Width: +0/-1 |
| Scanning Mode | Normal (Real-time autofocus) High precision (High precision autofocus) EDF (Extended depth of field) Z-Stack (Three Dimensional stacking) |
| Barcode Support | 1D: Interleaved 2 of 5, Code 39, Code 128 2D: Data Matrix, QR Code |
| Computer | Not included / Optional Minimum Specifications: Intel Core i7-7700 16GB Memory 128GB SSD & 1TB SATA Disk Windows 10 Professional 64-bit |
| Monitor | Not included / Optional |
| Interface | USB 3.0 |
| Included Software | DSAssistant EasyScanner software (for MoticEasyScan One) |
| Optional Software | DSAConference, DSServer |
| Optional Objective | S Apo Objective 40X/0.75 |
| Optional Modules | No |
| Net Weight | 12.6 kg (without PC) |
| Dimensions | 205 x 398 x 420mm |
