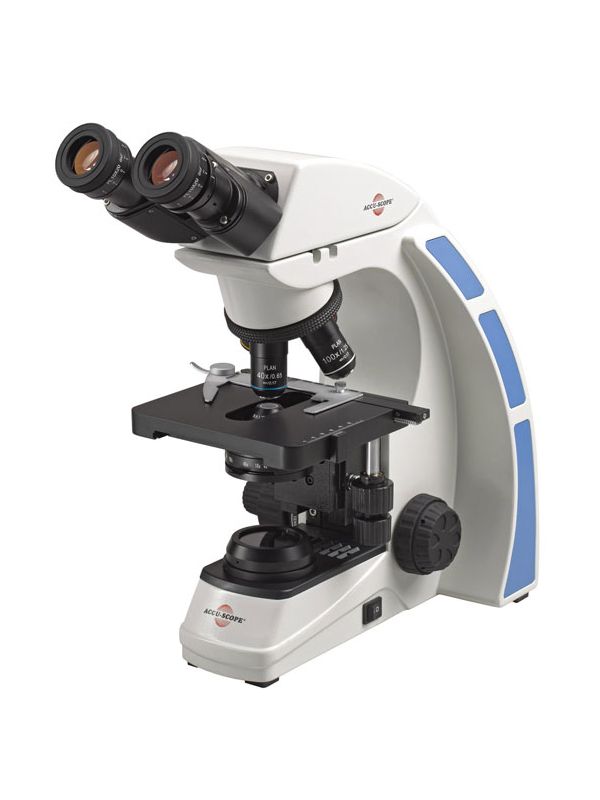

Accu-Scope 3000-LED-40
SKU
3000-LED-40
$1,030.50
Superb Optics, Durable & High Performance
The ACCU-SCOPE® 3000-LED Microscope Series delivers outstanding optical performance, value and resolution to meet the exacting standards of life science professionals and students. With a newly designed Infinity plan optical system, a best in class 20mm field of view and a super-bright 3 watt LED illuminator, the 3000-LED Series provides high contrast images with outstanding resolution, precision design and enhanced illumination.
Ease of Viewing
Newly designed plan achromat focusable eyepieces, with a large 20mm field of view allow users to see more quickly.
Optical Excellence
ACCU-SCOPE's new Infinity plan objectives provide users with high resolution, high contrast objectives at an affordable price. Objectives are available in plan achromat and plan phase configurations.
Illumination
A super, bright white LED light provides over 15 years of illumination saving time, energy and the cost of replacement bulbs.
Specifications
- Optical System: Infinity Optical System, f = 180mm, Anti-Mold
- Viewing Head: Binocular Siedentopf type, inclined 30°; interpupillary distance adjustment 48-75mm, 360° rotatable
- Eyepieces: HWF Plan 10x eyepiece, 20mm field of view with built-in diopter adjustment; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering. Eyepiece accepts a Ø20.5mm reticle
- Nosepiece: Rear facing quadruple, ball bearing nosepiece with positive click stops to ensure parcentration
- Objectives: Infinity Plan Achromat 4x, 10x, and 40xR* -- (*spring-loaded)
- Stage: Mechanical Stage size 140mm X 132mm with X-Y movement range of 76mm X 50 mm
- Condenser: N.A. 1.25 Abbe condenser (with slot for sliders) on a rack and pinion with iris diaphragm; glass lens in condensing system protects iris diaphragm from classroom tampering
- Stand: Cast alloy aluminum
- Illumination: 3-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use
- Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear
- Accessories: Dust cover, immersion oil and instruction manual, universal power supply 110v-240v
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
| MSRP | 1,145.00 |
|---|---|
| Head Type | Binocular |
| STEM Approved | Yes |
| Illumination | LED |
| Power | Corded |
