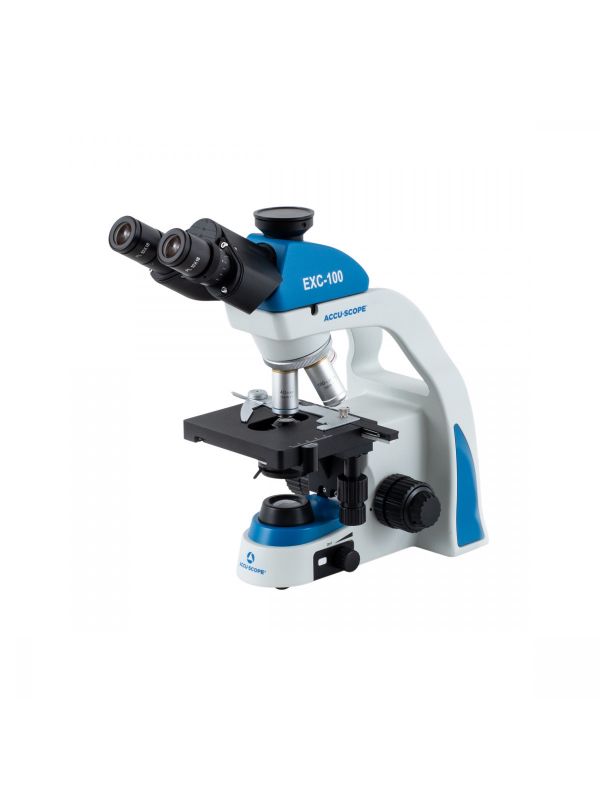

Accu-Scope EXC-103
SKU
EXC-103
$562.50
Value and Performance
Engineered for classroom applications, the EXC-100 Series is built on a rugged, die-cast aluminum frame designed for years of use. Featuring ergonomic focusing controls, all metal focusing gears and a wide field of view, the EXC-100 Series delivers an exceptional balance of value and performance in an educational microscope. Choose between binocular (EXC-100) and trinocular (EXC-103) viewing models.
Great Images
Ideally suited for the classroom environment, the EXC-100 Series provides clear images during observation. with front lens surfaces that are flush and easy to clean. Objectives are available in achromat, semi-plan, plan achromat, and plan phase.
Illumination
The economical LED illuminator in the EXC-100 Series uses much less energy than traditional microscopes, plus it's rechargeable, so the microscope can be operated with or without a cord.
Ergonomics
The low positioned coaxial focusing mechanism provides complete ergonomic comfort to users during extended viewing periods. The coaxial focusing controls allow the user to rest their hand on the counter while focusing the microscope, allowing for maximum comfort.
- Optical System: DIN Optical System, f=160mm, Anti-Mold
- Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm
- Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering
- Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
- Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* -- (*spring-loaded)
- Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale
- Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
- Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
- Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable
- Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears
- Power: Power adapter delivers 5V1A to microscope from 100V-240V input
- Accessories: Dust cover and instruction manual included
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
| MSRP | 625.00 |
|---|
