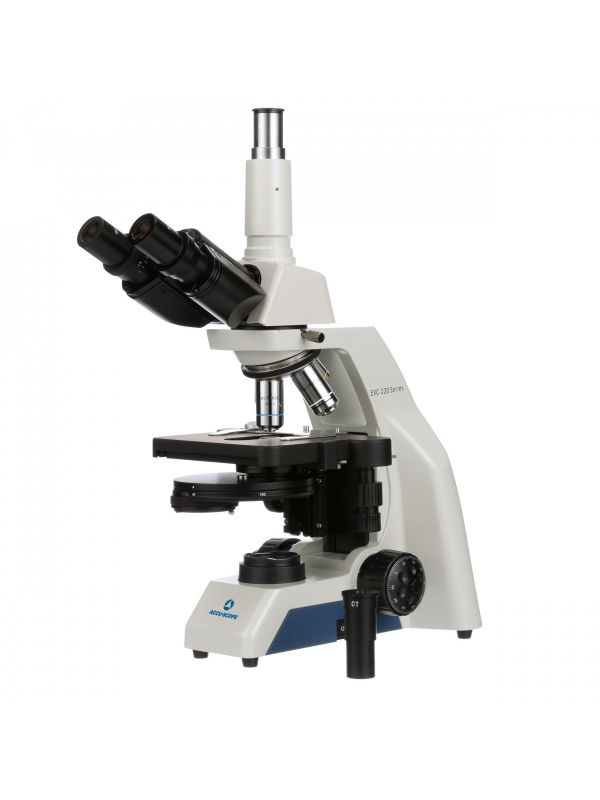

Accu-Scope EXC-123-PH

Accu-Scope EXC-123-PH

Engineered for clinical and classroom applications, ACCU-SCOPE's EXC-120 Series is equipped with sharp, high contrast objectives on a rugged, die-cast aluminum frame designed for years of heavy use. Featuring ergonomic focusing controls, all brass gears and the widest field of view eyepieces in its class, the EXC-120 Series delivers exceptional value and performance for an entry level clinical microscope.

$1,448.40
MSRP: $1,704.00
-
+

Description



Optical Excellence

Developed specifically for the educational and clinical markets, the EXC-120 Series objectives provide sharp, clear images with front lens surfaces that are flush and easy to clean. Objectives are available in achromat, semi-plan, plan achromat, and plan phase.

Ergonomics

The low positioned coaxial focusing mechanism provides complete ergonomic comfort to users during extended viewing periods. The coaxial focusing controls allow the user to rest their hand on the counter while focusing the microscope, allowing for maximum comfort.

Illumination

Available with a LED illuminator allowing for tremendous energy savings, the EXC-120 Series provides superb brightness.

Specifications

  • Optical System: DIN Optical System, f=160mm, Anti-Mold
  • Viewing Head: Trinocular; Inclined 30° and rotatable 360°; Single diopter adjustment 55-72mm; Interpupillary distance adjustment 48-75mm
  • Eyepieces: WF10x/18.5mm field of view; a pointer is standard in one eyepiece; eyepieces are locked-in to prevent classroom tampering and accept 19mm reticles
  • Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
  • Objectives: Plan Phase Achromat objectives; 4x, 10x, 40xR* and 100xR oil* -- (*spring-loaded)
  • Stage: Stage size 150mm x 139mm; travel area 75mm (X) x 32mm (Y) movement with right hand control; vernier scale reading to 0.1mm
  • Condenser: Phase condenser, N.A. 1.25 on rack and pinion with iris diaphragm and swing-out filter holder
  • Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
  • Illumination: Variable LED illumination; bulb life rated for 20,000 hours; UL approved
  • Focusing System: Coaxial coarse and fine focus controls with an adjustable tension control; all metal gears
  • Accessories: Dust cover, immersion oil and instruction manual included
  • Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
  • Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb

Additional Information

Head Type Trinocular
STEM Approved Yes
Illumination LED
Power Corded
