DC20-169-ASC

DC20-169-ASC

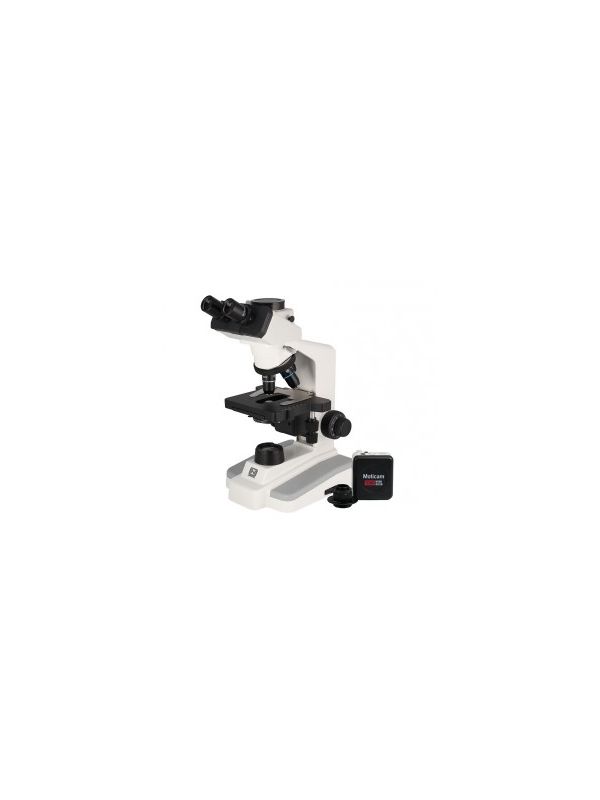

DC20-169-ASC Trinocular Microscope & HDMI Camera Bundle Specifications Superior in design and in performance, the DC20-169 series incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance. This unit is supplied with super high contrast ASC lenses which deliver extra image clarity. Included Moticam 1080L turns your microscope into an instant multimedia learning platform.

$1,861.50
MSRP: $2,190.00
-
+

Description

MOTICAM 1080L SPECIFICATIONS

Sensor Type: CMOS
Optical: 1/2.8"
HDMI Output: 1080P
Active Pixels: 1920 x 1080
Imaging Area: 8.5mm x 7.3mm
Scan Mode: Progressive
Shutter Type: Rolling Shutter
Maximum SNR: 41dB
D/R: 69dB
SD Card Slot
Interface: USB 2.0 and HDMI
For use with computer, software download available (Not Included)
OPTICAL SYSTEM

Widefield 10x /18mm eyepiece. Accepts optional #965-160 eyepiece reticle.
Trinocular viewing head with 30° inclined binocular eyepieces with dual diopters and interpupillary adjustment 54mm to 76mm, and vertical monocular tube with third eyepiece, rotates 360°.
930-005 video C-mount adapter included
3-position sliding rod directs light 100% to binocular eyepieces, or 100% to vertical tube, or 70% to vertical tube and 30% to binocular eyepieces.
DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) ASC super high contrast objectives. All are parfocalled, parcentered and color-coded.
Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.
ILLUMINATION

3W LED illumination with variable rheostat control.
Illuminated on/off switch, 3-wire grounded cord and plug.
0.5A time delay fuse.
FOCUSING

Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.
STAGE

Large rackless 140mm x 135mm (5-1.2 in. x 5-1/4 in.) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 70mm (x) by 50mm (y) movement with graduations of 0.1mm.
1.25 N.A. Abbe condenser has rack & pinion focusing, iris diaphragm, swing-out filter holder with clear blue, green and yellow filters supplied.
FRAME

Rugged cast aluminum, gray enamel finish.
Base dimensions: 185mm x 235mm (7-1/4 in. x 9-1/4 in.)
Height : Inclined eyepiece, 380mm (15 in.). Net wt. 7.2 kgs (15.8 lbs)
Vertical eyepiece, 455mm (18 in.)

Additional Information

Head Type Trinocular
STEM Approved Yes
Connection Type Mini-HDMI
Illumination LED
Power Corded
