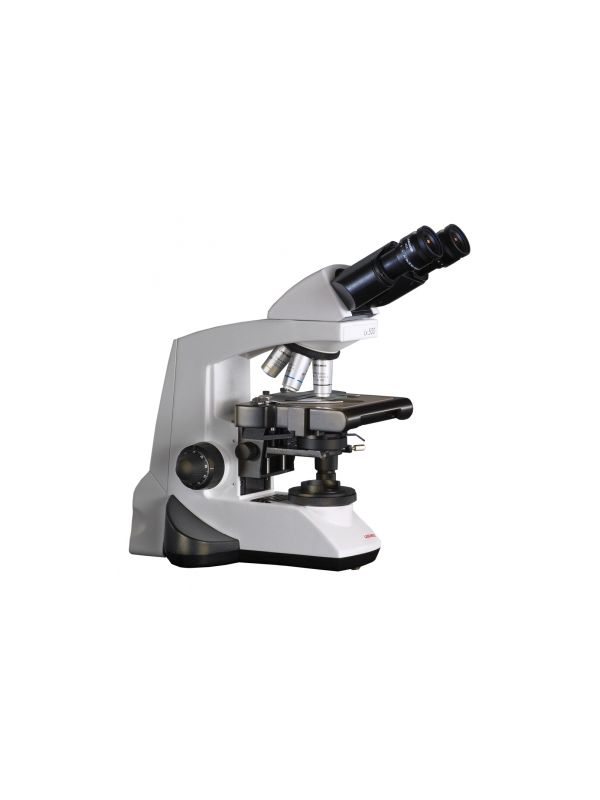

Labomed Lx 500 Binocular LED

SKU
9144600
$1,926.00

Helping Make Your Next Great Discovery Possible

Lx 500 is the outcome of a combination of world-class technology and design innovation. With its feature rich standard configuration and a host of accessories, Lx 500 is a versatile and fully extendable research microscopy system. With its graceful symmetry and its sophistication in ergonomics, this microscope speaks to today's clinicians and researchers looking for the junction of affordable yet reliable functionality.

Lx 500 Advantages:

• RP2 series infinity corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color reproduction. These optics are delight to even the most discerning of optical critics.

• A rackless stage ensures safety and maximization of your workstation space, while our Ceramic surface promises you total scratch resistance.

• True Kohler illumination with a flip-top condenser guarantees superb contrast from very low to large magnifications, making this microscope ideal for clinical use.

Stand

• Single mold sturdy stand with anti-rust materials. Extended base for better stability

Viewing Body

• Siedentopf Binocular, 360° rotatable, Inter pupillary distance 47 - 75mm with height adjustment

Eyepiece

• Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated

Nosepiece

• Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip

Objectives

• RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated

Mechanical Stage

• Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Ytravel range 76mm x 50mm. Double specimen holder

Condenser

• Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides

Focusing

• Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation

Illumination

• True Köhler illumination with LED (built-in rechargeable battery) with variable illumination control. LED provides up to 50,000 hours

Electronics

• Universal input 100V - 240V AC, 50/60 Hz. Built in voltage stabilizer

More Information
MSRP 2,140.00
Head Type Binocular
STEM Approved No
Illumination LED
Power Cordless - Rechargeable
