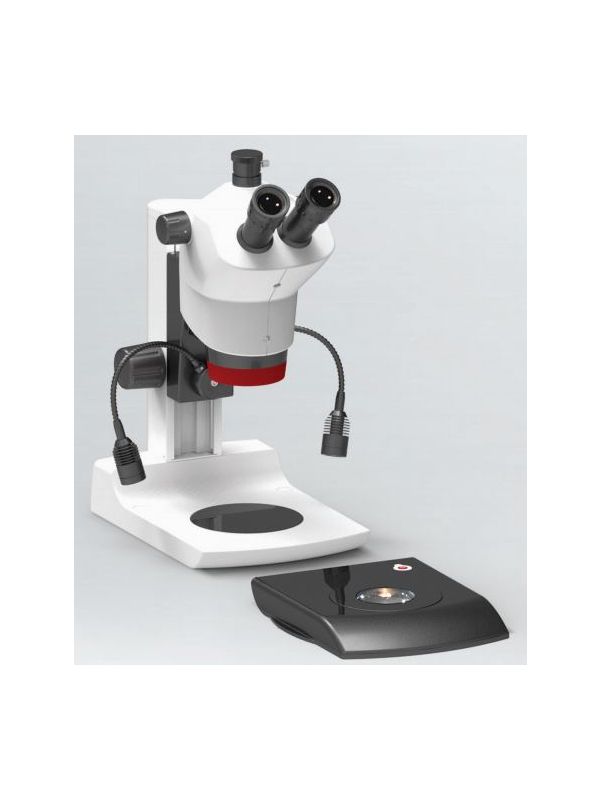

Labomed Luxeo 6Z Stereo Zoom Mirror Base Trinocular

SKU
4146400-800
$2,065.50

A Modular Design to Streamline Workflow

The Luxeo 6Z is the first in a new series of stereo microscopes from Labomed™ designed to bring greater flexibility and performance to work stations. With total integration of gooseneck and axial illumination, versatility in transmitted illumination features, and highly ergonomic stand options to choose from, the Luxeo 6Z will delight in every environment.

Luxeo 6Z Advantages:

23-LED ring light with sectional controls
Two flexible goosenecks cables are integrated within the focus bracket, creating more clearance for controlling focus drive. A built in 23-LED ring light with sectional controls will enable axial illumination while mitigating surface glare. An intuitive membrane switch cluster makes light intensity control convenient.
A bright LED base light illuminates objects from below
A bright LED base light illuminates objects from below. Users can quickly convert the system into a slim-base setup by removing the illumination cartridge. A lever toggles between bright field and dark field transmitted illumination for biological specimen. Flex Arm, Boom Stand, and Slim Base stand options are available.
Luxeo 6Z
A well-designed 6:1 Zoom system provides ease and comfort in accessing the right resolution. A detent system with magnification stops can be engaged for calibrating systems to processes. MaxLite™ coatings on all optical surfaces reduce glare and improve light homogeneity in the most demanding environments.


Luxeo 6Z Specifications

Optical System Greenough
Magnification Zoom 6:1
Eyepieces WF 10x/22mm with foldable eye guards, ±5 mm diopter adjustment
Optional: 16X and 20X eyepieces
IPD 50-75 mm
Viewing Angle Binocular, 45° and Trinocular, 45°
Working Distance 110 mm
Magnification Range 8x to 50x
Object Field Diameter 4.4 to 27.5 mm
Illumination Control Incident Light - LED Ring Light with Arc and Circular illumination options with intensity control:
- Front Angle Arc illumination with cluster of 11 LEDs
- Rear Angle Arc illumination with cluster of 12 LEDs
- Circular Illumination with cluster of 23 LEDs
- Goose neck for extra illumination
Transmitted Light Two options - detachable BF/DF (Bright field/Dark field) base;
Pre-configured mirror base for transparent objects
More Information
MSRP 2,295.00
Head Type Trinocular
STEM Approved Yes
Illumination LED
