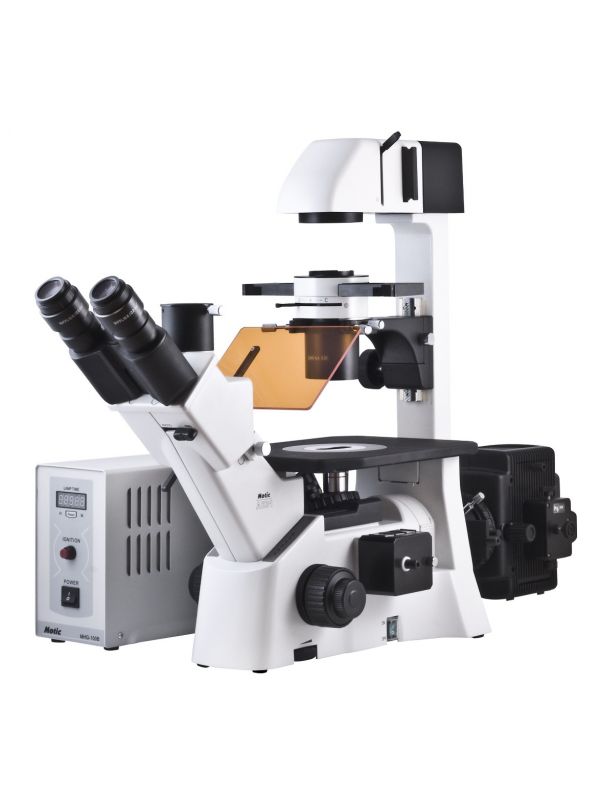

Motic AE 31 Trinocular with Epi Fluorescence

SKU
Motic AE 31 with Epi Fluorescence
$10,974.60

Combining the Motic AE30/31 optics with the unique design of epi fluorescence attachment, a fluorescence image of excellent brightnessand sharpness over an extended field of view.

AE31E LED Trinocular Inverted Microscope

                Siedentopf Trinocular tube 45° inclined (light split: 20/80)

                WF PL 10X/22mm high eyepoint eyepiece, with diopter adjustment and rubber eyecup

                Side facing quintuple nosepiece

                CCIS Plan Achromat objective PL4X

                CCIS Plan Achromat phase objective PL Ph10X, LWD PL Ph20X

                ELWD N.A. 0.30 (W.D. 72mm) condenser

                Phase slider Ph0, BF, Ph1

                Phase centering telescope

                Plain Stage, glass and metal stage inserts,

                3W LED illumination with intensity control

                45mm blue, ground glass and green interference filter

                Power cord, allen hexagonal key, vinyl dust cover

                Universal Power Supply 100-240V UL

                Modular System

 Complete EPI-Fluorescence Attachment for AE31 ELITE

               consists of the following individually listed parts:

                Epi-Fluorescence attachment with filter cassette

                Mercury Lamp 100W

                Lamphouse HBO 100W, Collector Lens and Mercury Lamp socket

                for HBO 100W

                Starter unit HBO 100W

                Lamp centering tool

                Power cord

EGFP/FITC/Cy2/AlexaFluor 488

                Exciter  AT480/30x

                Dichroic  AT505DC

                Emitter  AT535/40m



TRITC/Cy3/TagRFP/AlexaFluor 546

                Exciter  AT540/25x

                Dichroic  AT565DC

                Emitter  AT605/55m

More Information
MSRP 12.19
