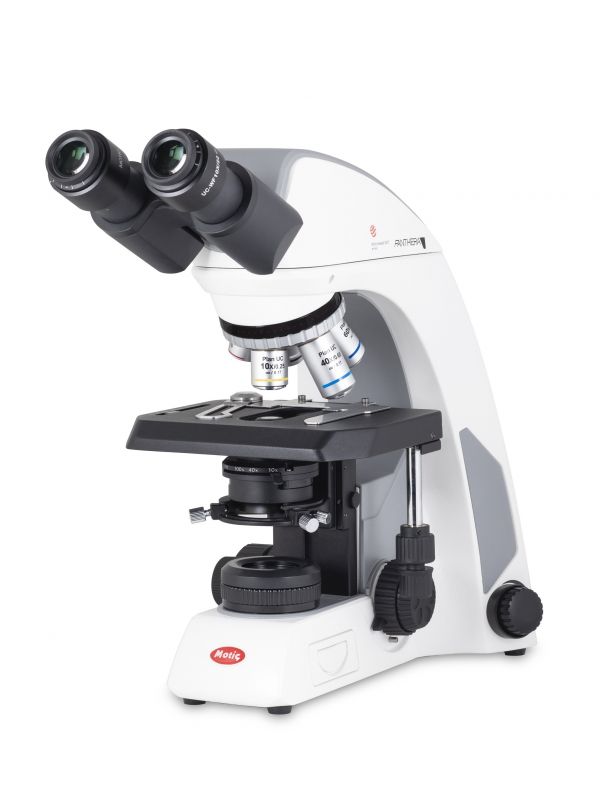

Motic Panthera C2 Binocular
SKU
Add to Compare
1100104601136
$1,932.30
Panthera C2 is a new world-class level cased in a revolutionary technical future-orientated solution, now accessible for life sciences. Stunning Ultra Contrast Optics for best insights, convincing performance of the dual-slide holder for one-hand operation, and intelligent light management with an LED “Feedback indicator”: a setup ready to smoothen your daily workflow.
The Panthera C2 is prepared for Phase contrast with slider or turret condenser, Polarization contrast, and Darkfield. It is even possible to integrate a ready-to-go LED Fluorescence module, allowing to apply this advanced method without the multiple problems associated with mercury bulb usage.
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Binocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| MSRP | 2,147.00 |
|---|---|
| Head Type | Binocular |
| STEM Approved | Yes |
| Illumination | LED |
| Power | Corded |
