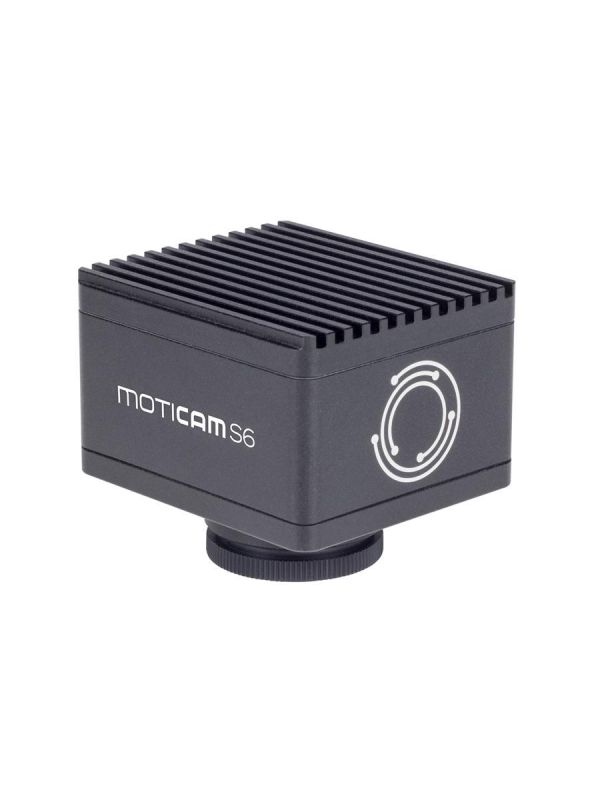

MOTICAM S6
SKU
Add to Compare
1100600101111
$799.00
A 6MP resolution of Moticam S6 is dedicated to large-sized monitors and printing purposes. Presentations to a greater public through video projector, but also reports in hardcopy form are performed with ease of handling. Utilize the advanced sensor technology of Motics S Series cameras.
| Model | Moticam S6 |
| Sensor Type | sCMOS |
| Sensor Size | 1/1.8" |
| Imaging Area | 8.92mm (Diagonal) |
| Capture Resolution Info | 6MP |
| Live display mode through USB | 3072x2048, 1536x1024 pixels |
| Pixel size | 2.4x2.4μm |
| Scan mode | Progressive |
| Shutter mode | Rolling shutter |
| Data transfer | USB 3.1 |
| Max. frames per second (fps) | 3072x2048 @ 30fps 1536x1024 @ 50fps (*) |
| Exposure time | 16 μsec to 2 sec |
| Operating temperature | From -10 to +60 Degrees Celsius non condensing |
| Max. signal to noise ratio | 0.15mV @1/30 sec |
| Sensitivity | 425mV(G) @ 1/30 sec |
| Support device | TWAIN, SDK and DirectShow Driver |
| Supported OS | Windows 7/8/10, MAC OSX, Linux or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
| Power supply | 5V (From USB Port) |
| Package includes | CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux |
| Other features | (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. |
| MSRP | 729.00 |
|---|---|
| STEM Approved | No |
| Power | None |
