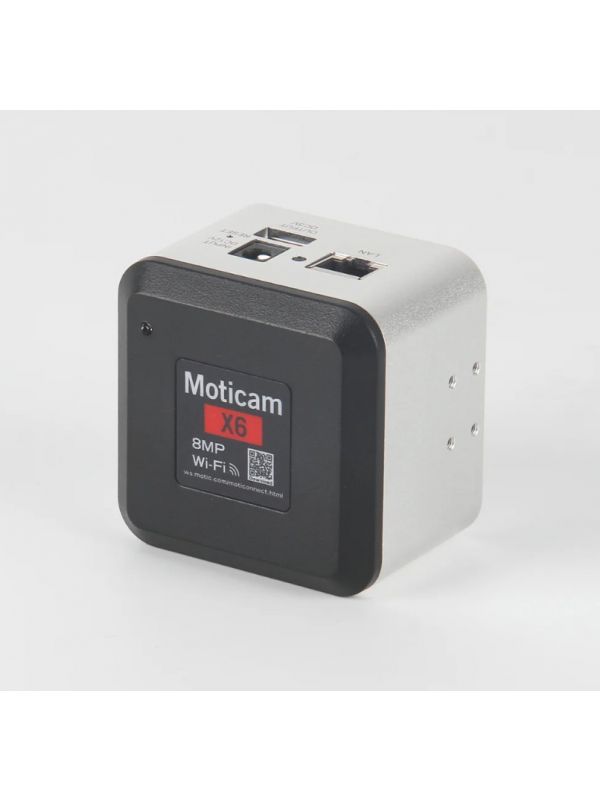

Moticam X6
SKU
Add to Compare
Moticam X6
$508.25
Brings powerful 4K clarity and fast, stable connections to enhance microscopy in both research and classroom environments. Designed for flexibility, it ensures seamless integration with various devices and operating systems.
Features:
-
8MP capture resolution with 4K live display
-
Dual-band Wi-Fi (2.4 & 5 GHz) and Ethernet connectivity
-
Cross-platform support: Windows, macOS, iOS, Android, web browser
-
Up to 25 fps (Full HD) for smooth live streaming
-
Includes MotiConnect App and Motic Images Plus 3.1 software
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Imaging area | 6.37 mm (Diagonal) |
| Capture resolution | 8MP (3840 x 2160 pixels) |
| Live display mode through Wi-Fi | 1920 x 1080, 3840 x 2160 (4K) |
| Live display mode through Ethernet | 1920 x 1080, 3840 x 2160 (4K) |
| Pixel size | 1.45 x 1.45 µm |
| Scan mode | Progressive |
| Shutter mode | Rolling shutter |
| Data transfer | Wi-Fi (2.4 & 5 GHz), Ethernet |
| Max. frames per second (fps) | 3840 x 2160 @ 15 fps, 1920x1080 @ 25 fps (depending on Wi-Fi strength) (*) |
| Exposure time | 0.03s ~ 1s |
| Operating temperature | From -10 to +50 Degrees Celsius non condensing |
| Max. signal to noise ratio | 39 dB |
| Dynamic range | 65 dB |
| Sensitivity | 1.9V/Lux-sec (550nm) |
| Support device | Universal Web browser (HTML5) |
| Supported OS | Windows 7/8/10, MAC OSX, Android 4.0 or higher, iOS 7 or higher |
| Minimum computer requirements | 2 GHz dualcore - RAM memory 2 GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Focusable lens | 12 mm |
| Software | MotiConnect App for iOS and Android and Motic Images Plus 3.1 for Windows 10 and MAC OSX 10.9 or higher |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
| Power supply | 12V (External Power supply) |
| Package includes | CS ring adaptor, focusable lens, 30 mm and 38 mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro-tube, Motic Images Plus 3.1, universal power supply 100V-240V (CE) |
| Other features | USB 5V for power supply of external devices |
| Notes | Transport and storage case |
| (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |
| MSRP | 535.00 |
|---|---|
| STEM Approved | No |
| Connection Type | WiFi |
| Power | None |
