National BTI1-169-SP

SKU
BTI1-169-SP
$1,904.85

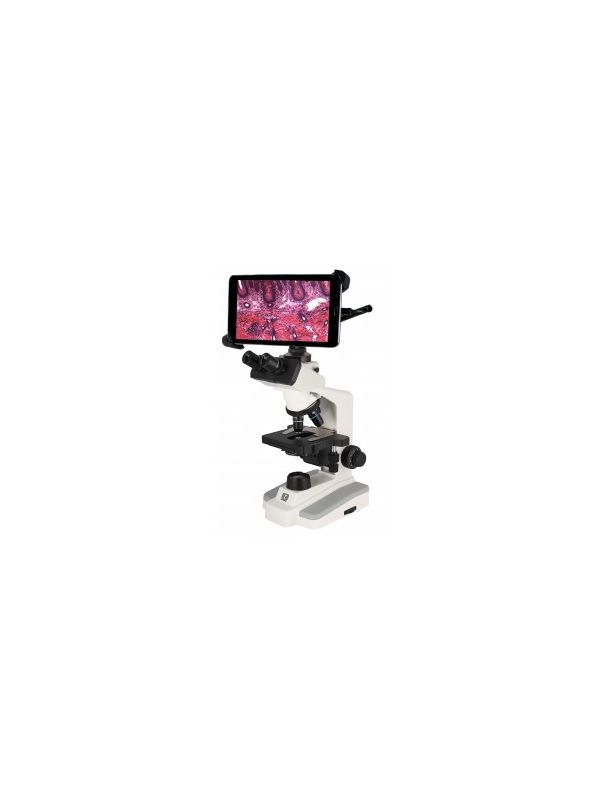

Combining the features of National's 169 advanced microscope with an Android based tablet system offers unlimited possibiities. Like the Moticam X, this WiFi digital tablet transmits live images to iOS or Android devices. Use it as a conventional microscope or share live images with colleagues using WiFi tablets, wireless laptops. Tablet includes preloaded Motic apps.

TABLET SPECIFICATIONS
  • 8" LCD Android tablet with 1280x800 screen resolution
  • Connection: WiFi; micro SD card
  • 5.0 MP sensor
  • 5.0 MP captured image resolution
  • WiFi Resolution: 2.0MP - 5.0MP
  • 720P captured video resolution
  • HDMI: 1080
  • Android operating system
  • WiFi: WiFi output (802.1 ab/g/n supporting both hot-spot mode or using existing WiFi network)
  • Preloaded optimized MotiConnect app
  • Supplied with Motic Images Plus software for Mac/PC
  • Built-in MoticHub allows for wireless sharing

OPTICAL SYSTEM

  • Widefield 10x /18mm eyepiece. Accepts optional #965-160 eyepiece reticle.
  • Trinocular viewing head with 30° inclined binocular eyepieces with dual diopters and interpupillary adjustment 54mm to 76mm, and vertical monocular tube with third eyepiece, rotates 360°.
  • 930-005 video C-mount adapter included
  • 3-position sliding rod directs light 100% to binocular eyepieces, or 100% to vertical tube, or 70% to vertical tube and 30% to binocular eyepieces.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) semi-plan objectives. All are parfocalled, parcentered and color-coded.
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.

ILLUMINATION

  • 3W LED illumination with variable rheostat control.
  • Illuminated on/off switch, 3-wire grounded cord and plug.
  • 0.5A time delay fuse.

FOCUSING

  • Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated.

STAGE

  • Large rackless 140mm x 135mm (5-1.2 in. x 5-1/4 in.) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 70mm (x) by 50mm (y) movement with graduations of 0.1mm.
  • 1.25 N.A. Abbe condenser has rack & pinion focusing, iris diaphragm, swing-out filter holder with clear blue, green and yellow filters supplied.

FRAME

  • Rugged cast aluminum, gray enamel finish.
  • Base dimensions: 185mm x 235mm (7-1/4 in. x 9-1/4 in.)
  • Height : Inclined eyepiece, 380mm (15 in.). Net wt. 7.2 kgs (15.8 lbs)
  • Vertical eyepiece, 455mm (18 in.)

WARRANTY

  • Microscope: Lifetime limited warranty, excluding bulb, cord, and fuse
  • Camera: 1 year
More Information
MSRP 2,241.00
Head Type Trinocular
STEM Approved Yes
Digital Camera Resolution 5.0 Megapixel
Connection Type WiFi, Tablet
Illumination LED
Power Corded
