National Zoom - 440T-440P

SKU

440T-440P

$977.40

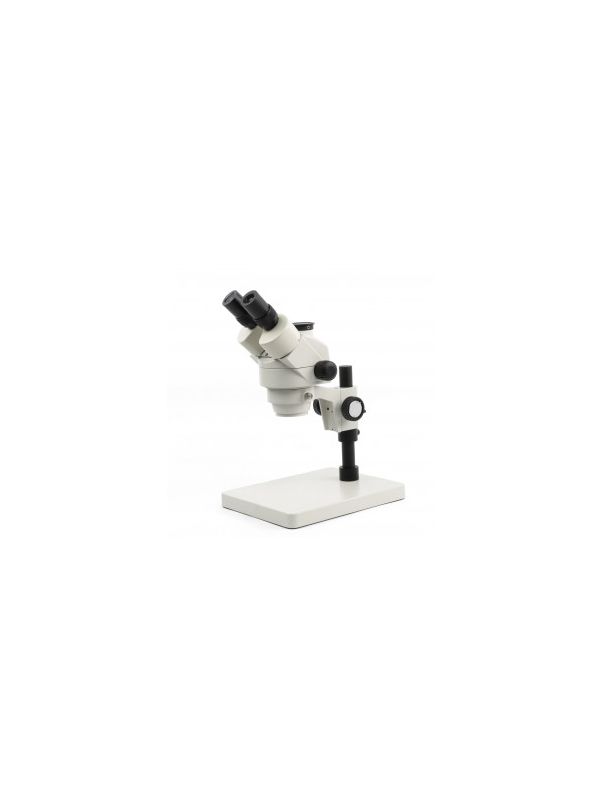

The 440T-440 is a professional-quality stereo microscope for industrial and educational settings. The large zoom ratio of 6:1 and a standard working distance of 110mm provide the flexibility to support a large number of potential applications while the addition of an auxiliary lens or substitute eyepieces extend the magnification up to a maximum of 180X.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details
More Information

MAGNIFICATION

0.75x to 4.5x Zoom

OPTICAL SYSTEM

Trinocular viewing head
Paired widefield 10x eyepieces are 45° inclined, with dual diopter adjustments, interpupillary adjustment from 55mm to 75mm. Accepts 23mm eyepiece reticle.
Viewing head rotates 360°.
Continuous magnification from 7.5x thru 45x.

FOCUSING

Large dual focusing knobs with slip clutch to prevent damage to mechanism.
Tension adjustment eliminates focus 'drift'.

ILLUMINATION

No illumination

STAGE

Plain base
No stage clips

FRAME

Professional, all-metal frame, gray enamel finish.
Heavy-duty post mount with locking support collar, permits up or down adjustment of viewing head to accommodate different sized objects on stage.
Height: 340mm (13-3/8 in.) extends to 433mm (17 in.) for larger objects.
Base width: 171mm (6-3/4 in.), Base depth: 242mm (9-1/2 in.)
Net wt. 5.4 kgs (12 lbs)

PACKING

Molded styrofoam container with rubber eyeshields and vinyl dustcover.
Individual: Ship wt. 7.7 kgs (17 lbs), Dimensions 550x375x375mm (22x15x15 in.)
Master carton pack 2 each: Ship wt. 14.4 kgs (32 lbs), Dimensions 475x375x475mm (19x15x19 in.)
