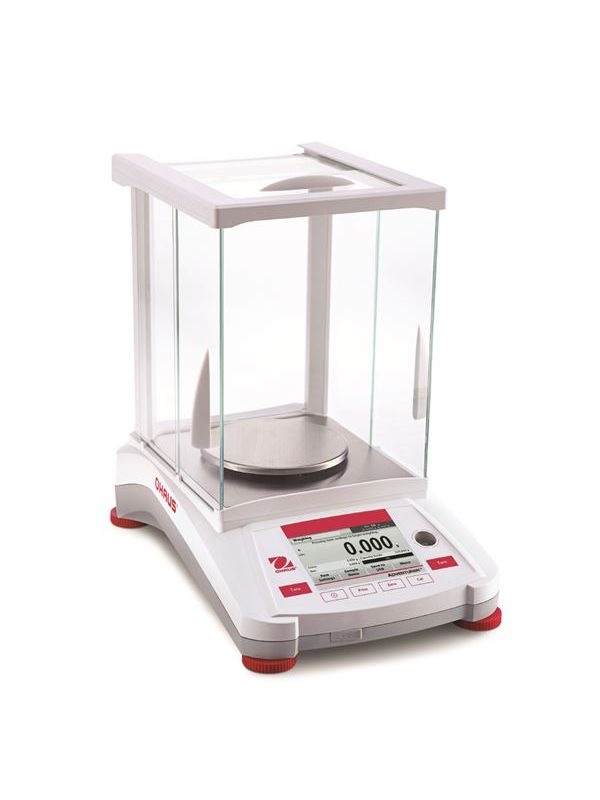

Ohaus AX223
SKU
30100605
Striking the ideal balance between inventive features and functional, uncomplicated weighing capabilities, the OHAUS Adventurer incorporates all of the applications necessary for routine weighing and measurement activities. With a color touchscreen, three level user management to fulfill GLP/GMP compliance capabilities, two USB ports, and much more, Adventurer is the most complete balance in its class.
Applications
- Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Formulation, Density Determination, Totalization, Display Hold, Batch Printing
Display
- 4.3" (109 mm) Full-color VGA graphic touchscreen with user-controlled brightness
Operation
- AC adapter (included)
Communication
- RS232, USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Construction
- Metal base, ABS top housing, stainless steel pan, glass draftshield with 2-piece top mounted side doors & sliding top door (1mg models only), illuminated up-front level indicator, weigh below hook, security bracket, calibration lock, full housing in-use cover
Design Features
- Selectable environmental filters, auto tare, user selectable span calibration points, software lockout and reset menu, user selectable communication settings and data print options, user definable project and user IDs, up to 9 operating languages
| Maximum Capacity | 220 g |
| Readability | 1 mg |
| Pan Size | 5.1 in (130 mm) |
| Internal Calibration | AutoCal™ - Automatic |
| Draftshield | Included |
| Auto Door | Not applicable |
| Auxiliary Display Model | Available as an Accessory |
| Battery Life | Not applicable |
| Communication | USB; RS232 (Included); USB Host |
| Dimensions | 13.93 in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW) |
| Display | High resolution full colour VGA touch display |
| In-Use Cover | Included |
| Legal for Trade | Not applicable |
| Linearity ± | 0.002 g |
| Minimum Weight (USP, 0.1%, typical) | 2 g |
| Net Weight | 12.8 lb (5.8 kg) |
| Pan Construction | Stainless Steel |
| Power | AC Adapter (Included) |
| Repeatability, typical | 1 mg |
| Stabilization Time | 2 s |
| Tare Range | To capacity by subtraction |
| Units of Measurement | Singapore Tael; Ounce Troy; Pennyweight; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce |
| Working Environment | 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing) |
| MSRP | 2,384.00 |
|---|
