Ohaus R71MHD6
SKU
30088841
Simplifying Even the Most Complex Industrial Applications. Ten advanced modes simplify complex applications and minimize the need for manual calculations and it can also control peripheral devices and/or a scale platform with option kit. With one second stabilization time, up to 350,000d display resolution and legal for trade certifications, Ranger 7000's precision cannot be matched by any scale in its class. Ranger 7000 was developed to thrive in rugged and harsh industrial environments. This modular scale was built with IP54 metal housing and sealed metal indicator to ensure durability.
Product Specifications
| Maximum Capacity | 6.0 kg (15.0 lb) |
| Readability | 0.02 g (5.0E-5 lb) |
| Readability (Certified) | 0.2 g (5.0E-4 lb) |
| Platform Size (Length) | 240.0 mm (9.4 in) |
| Platform Size (Width) | 240.0 mm (9.4 in) |
| Battery Life | 9 Hours with Rechargeable Battery |
| Second Scale Input | Yes |
| Test Weight | 6kg, OIML F2 or ASTM CL 4 |
| Platform Construction | Stainless Steel |
| Power |
AC Power (Included);
Rechargeable Battery (Not Included) |
| Linearity ± | 0.04 g |
| Protection Rating | IP54 |
| Outputs | 3 In/4 Out digital I/O |
| Transportation Case | Not Applicable |
| Internal Calibration | InCal™ - Semi Automatic |
| Tare Range | To capacity by subtraction |

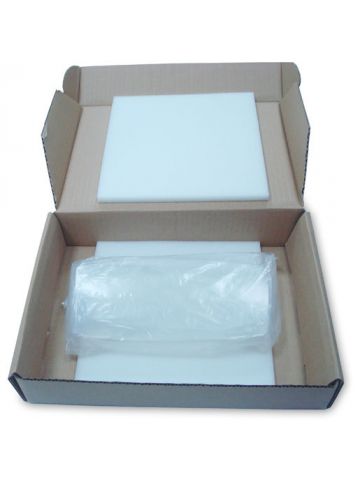

| Inuse cover | Included |
| Dimensions (Length) | 420.0 mm (16.5 in) |
| Dimensions (Width) | 280.0 mm (11.0 in) |
| Working Environment | 50°F – 85°F, 80%RH, non-condensing |
| Working Environment | 10°C – 30°C, 80%RH, non-condensing |
| Net Weight | 7.2 kg (16.0 lb) |
| Dimensions (Height) | 114.0 mm (4.5 in) |
| Display | 4.3’’/10.9 cm TFT Graphic LCD |
| Legal for Trade |
NTEP Certified;
Measurement Canada Approved |
| MSRP | 4,325.00 |
|---|
