Swift M17B-MP
SKU
M17B-MP
$1,765.80

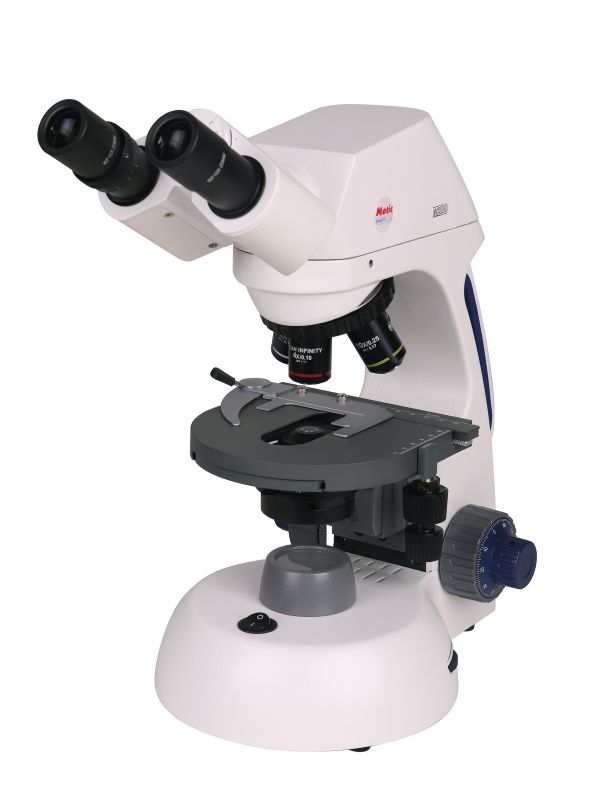

The M17 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with binocular head, this research level microscope also incorporates 3W LED illumination and wide field 20mm eyepieces for a very crisp image.
OPTICAL SYSTEM
- Widefield 10x /20mm eyepieces
- Binocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
- Infinity corrected Plan 4x (0.10 N.A.), Infinity Phase 10x (0.25 N.A.), Infinity Phase 40xR (0.65 N.A.) and Infinity Plan 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) All are parfocalled, parcentered and color-coded
- Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides
- Centering telescope included
ILLUMINATION
- 3W LED
- Illumination on/off switch
ELECTRICAL
- 110V - 220V switching power supply, unit shipped with American plug
FOCUSING
- Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
STAGE
- Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
- Phase contrast 5 position Abbe condenser N.A. 1.25 (BF, DF, Phase 1, Phase 2, Phase 3)
FRAME
- Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
- Height: 14-1/2 in. (369mm). Net wt. 30.9 lbs (14.0 kgs)
| MSRP | 1,962.00 |
|---|---|
| Head Type | Binocular |
| STEM Approved | Yes |
| Illumination | LED |
| Power | Corded |
