Swift M17T-HD-MP
SKU
Add to Compare
M17T-HD-MP
$3,650.40

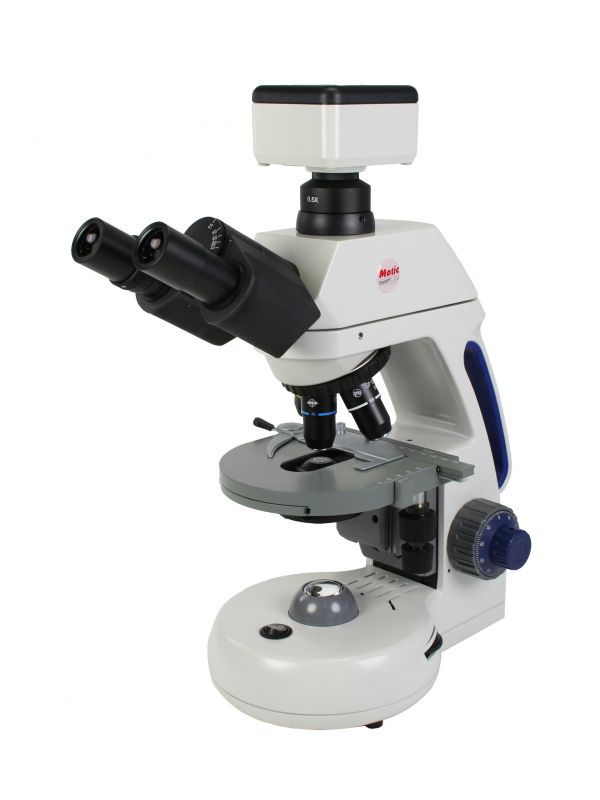

Trinocular LED Microscope with Integrated HD Camera
The M17 compound microscope series features infinity corrected plan optics, ideal for college laboratories, veterinary and medical applications. Supplied with trinocular head and HDMI Camera, this research level microscope also incorporates 3W LED illumination and wide field 20mm eyepieces for a very crisp image.
Included Moticam 1080L turns your microscope into an instant multimedia learning platform.
4000X CAMERA SPECIFICATIONS
- Sensor Type: CMOS
- Sensor Size: 1/2.8"
- Light Sensitive Area: Diagonal 6.4mm
- Capture Resolution: 8MP (3864x2228 pixels)
- Pixel Size: 1.45x1.45um
- Scan Mode: Progressive
- Shutter Type: Rolling Shutter
- USB 2.0: A type female chassis, host, mouse support
- USB 3.0: A type female chassis connector, device, UVC
- HDMI: 3840x2160@30HZ
- Network Port: 100Mbps RJ45 (no indicator)
- SD Card: SD2.0, SD3.0 support (SDHC, SDXC card support)
- Power Button: Flick switch
- WiFi Reset Button: Long press to reset
- Software: MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS
- Package includes: 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/φ38, Macro Tube, Macro Calibration card
OPTICAL SYSTEM
- Widefield 10x /20mm eyepieces
- Trinocular viewing head with 30° inclined eyepieces, with diopter and interpupillary adjustment 54mm to 76mm
- Infinity corrected 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) objectives. (Only the 100xR objective is oil immersion.) PLAN lenses. All are parfocalled, parcentered and color-coded
- Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives. Mounted in reverse position to facilitate ease in changing slides
ILLUMINATION
- 3W LED
- On/off rocker switch
ELECTRICAL
- 110V - 220V external switching power supply, unit shipped with American plug
FOCUSING
- Coaxial coarse and fine focusing controls, coarse has tension adjustment, fine is graduated
STAGE
- Large 5-3/4 in. x 5-1/2 in. (142mm x 140mm) stage; built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls
- 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm
FRAME
- Base dimensions: 10-1/4 in. x 6-3/4 in. (261mm x 172mm)
- Height: 22 in. (559mm). Net wt. 30.9 lbs (14.0 kgs)
| MSRP | 4,056.00 |
|---|---|
| Head Type | Trinocular |
| STEM Approved | Yes |
| Digital Camera Resolution | 2.0 Megapixel |
| Connection Type | USB,WiFi,Mini-HDMI,Micro SD Card |
| Illumination | LED |
| Power | Corded |
