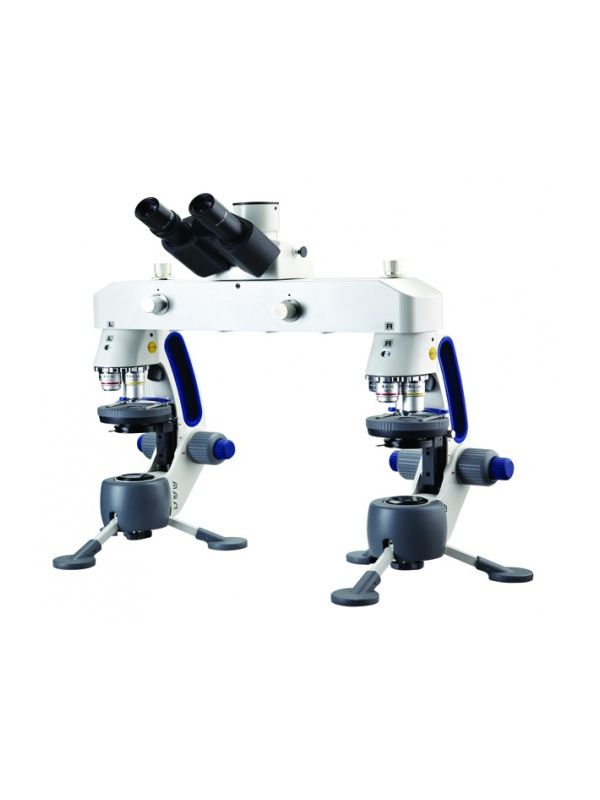

Swift M3-F

Swift M3-F

Dive into comparison and forensic studies with this unique comparison microscope that features trinocular head and LED illumination. Use the M3-F's revolutionary technology to compare images in both micro and macro environments. The M3's dedicated macro lens, with a large working distance, allows you to view not only bullets but also larger more bulky, "evidence" items. Swift's powerful optical system allows for images to be seen either 100% from the left microscope, 100% from the right microscope, side-by-side, or over lapping. With optional C-mount adapter, you can easily attach any C-mount ready imaging device.
$1,799.10
MSRP: $1,999.00
-
+

Description

OPTICAL SYSTEM
  • Widefield 10x /18mm eyepieces.
  • Trinocular viewing head with 45° inclined eyepiece.
  • DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) achromat objectives, and 1X Macro objective.
  • Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives.
USE OF TRINOCULAR PORT
  • To use the trinocular port with a digital video camera, you must purchase a video C-mount adapter with a 0.5X lens (MA15602).
ILLUMINATION
  • LED light rated up to 50,000 hours of life.
  • Batteries allow up to 500 recharges, for a total of 20,000 to 25,000 hours of use. Battery charger included with microscope, automatically shuts off when batteries are fully charged, no danger of overcharging batteries and shortening battery life. No expensive recharger station needed/ Plug directly into wall outlet, or use ordinary, inexpensive power strip for recharging multiple microscopes. Indicator light changes from red to green when fully charged.
ELECTRICAL
  • 110V - 220V switching power supply, unit shipped with American plug.
FOCUSING
  • Coaxial coarse and fine focusing controls.
STAGE
  • Circular stage with diameter of 4 in. (97mm).
  • Gliding stage plate with "one-touch" stage clips.
  • Stage plate with 0.65 condenser.
  • Sealed iris diaphragm.
  • One-touch stage clips.
  • Black and white stage disks, and specimen cup.
FRAME
  • M3-F includes two microscope bodies.
  • Base dimensions:
  • Height: Net wt.
  • Ergonomic carry handles, promote proper handling.
  • Tripod legs allow for sturdy footing
PACKING
  • Frame and base in molded styrofoam container with vinyl dustcover.
  • Individual: Ship wt. 53 lbs (24.0 kgs), Dimensions 26x21x16 in. (66x53x41 cm.)
  • Master carton pack 1 each: Ship wt. 53 lbs (24.0 kgs), Dimensions 26x21x16 in. (66x53x41 cm.)

Additional Information

Head Type Trinocular
STEM Approved Yes
Illumination LED
Power Cordless - Rechargeable
